350LB Barcode Series
1,200

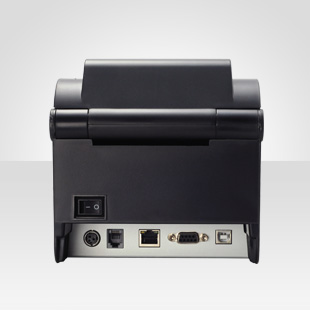

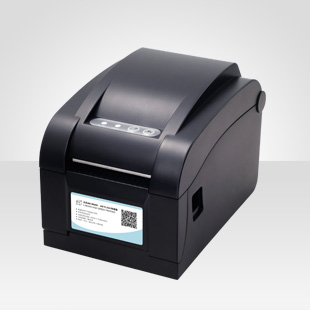

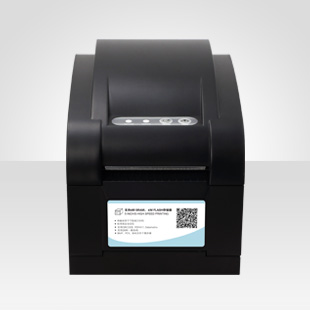

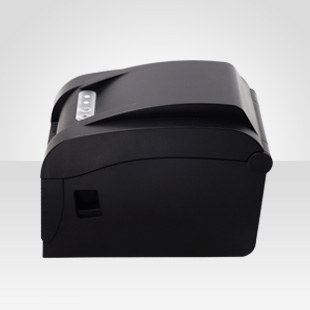

PR350LB is the lastest thermal barcode printer of 2013Y, print speed can be up to 152mm/s , support QR CODE printing. support paper roll, sticker, adhesive sticker, etc. Support label paper auto detection.


Function

● Various label width, can be 16mm-82mm
●Label paper auto detection
●Temperature control function
●Modularity design and meet with various applications

Parameters

Printing
Printing method Direct thermal

Resolution

203DPI

Print width

16-82mm

Printing speed

152mm/s

Memory

DRAM: 4M  FLASH: 4M

Print head temperature
sensor

Thermal sensitive resistance

Paper exists detection

Photosensor

Interface

USB Serial+USB+Lan

Character size

ANK,Font A:1.5×3.0mm(12×24 dots)
Font B:1.1×2.1mm(9×17 dots)
Simplified /traditional Chinese: 3.0×3.0mm(24×24 dots)
Barcode Character

Barcode

CODE128、EAN128、ITF、CODE39、CODE93、EAN13、
EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、
CODABAR、POSTNET、UPC-A、UPCA+2、UPCA+5、
UPC-E、UPCE+2、UPC-E+5、CPOST、MSI、MSIC、
PLESSEY、ITF14、EAN14

Internal font

FONT 0 to FONT 8

Enlargement & rotation

(0°、90°、270°、 360°) 1 to 10 times enlargement in both direction; 0°、90°、270°、 360° rotation


Monochromatic PCX, BMP image files can be load to FLASH, DRAM

Media type

Paper type

Paper roll, sticker, adhesive sticker, etc

Paper width

16mm~82mm

Roll external
diameter

MAX 100mm

Roll inner diameter

MIN 25mm

Paper off type

Tear off or peel off

Power

Power supply input

24VDC, 2.5A

Physical characteristics
Weight 1.52KG
Dimensions

220(D) x 150(W) x 157(H)mm

Environmental Requirements
Work environment

5~45℃, 20-80%RH(no condensation)

Storage
environment

-40~55℃,≤93%RH(40℃)
